Industrial Coating Steel Structure Acrylic Polyurethane Topcoat

Short Description:

It is two component paint, Group A is made of imported high weathering hydroxyl-containing acrylic resin, super weather-resistant pigment, auxiliary agent, solvent, etc., and high weathering topcoat composed of an aliphatic special curing agent as group B.

Send email to us

*Vedio:

*Product Features:

1.Excellent Anti-corrosion performance, chemical atmosphere, salt, gasoline, kerosene, motor oil, hydrocarbon solvents, humidity, rain and condensation;
2, Good flexibility, wear resistance, impact resistance.
3, Good decorative performance: light retention, color retention performance is good.
4, Heat resistance to 120 ℃, outstanding weather resistance, artificial accelerated aging for 1000 hours;
5, Overcoating is easy to repair and can be cured at room temperature or dried at low temperature.

*Technical Datas:

Item	Standard
Color	All colors
Viscosity (coating-4), s)	70-100
Fineness, μm	≤30
Impact strength, kg.cm	≥50
Density	1.10-1.18kg/L
Use temperature, dry condition	the maximum operating temperature is 140 ℃.
Thickness of Dry film, um	30-50 um/per layer
Gloss	≥80
Coverage, kg/sqm	0.09
Flashing point,℃	27
Solid Content,%	65%
Coverage,sqm/kg	5-7
Dry Time（23℃）	Surface Dry≤2h
Dry Time（23℃）	Hard Dry≤24h
Hardness	≥0.5
Flexibility, mm	≤1
VOC,g/L	≥400
Alkali resistance, 48h	No foaming, no peeling, no wrinkling
Water resistance,48 h	No foaming, no peeling, no wrinkling
Gasoline resistance, 120	No foaming, no peeling, no wrinkling
Weather resistance, artificial accelerated aging for 1000 h	No obvious crack, discoloration ≤ 3, light loss ≤ 3
Salt-resistant fog (1000h)	no change in the paint film.

*Product Usage:

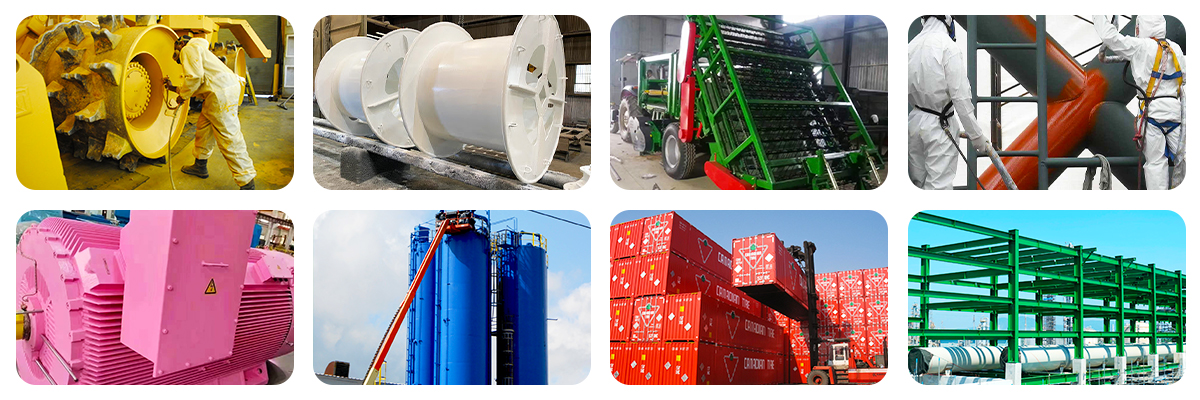

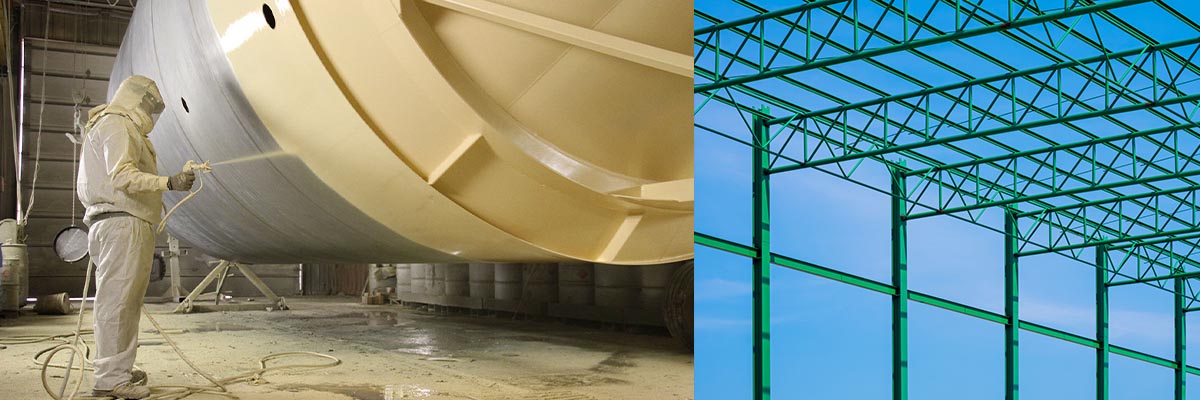

Applicable to aircraft, vehicles, ships, petroleum machinery, engineering machinery, bridges, power supply equipment, high-voltage switchgear and other large-scale steel structures, to achieve high-performance decoration and protection.

*Matching Paint:

Primer: Epoxy primer, epoxy zinc phosphate primer.
Applicable substrates:steel, aluminum, non-metallic materials, etc.

*Surface Treatment:

The surface of the primer should be clean, dry and pollution-free. Please pay attention to the coating interval between the construction and the primer.

*Construction Condition:

The substrate temperature is not lower than 5 ℃, and at least 3 ℃ higher than the air dew point temperature, and the relative humidity is <85% (temperature and relative humidity should be measured near the substrate). Construction is strictly prohibited in fog, rain, snow, and windy weather.

Pre-coat the primer and intermediate paint, and dry the product after 24 hours. The spraying process is used to spray 1-2 times to achieve the specified film thickness, and the recommended thickness is 60 μm. After construction, the paint film should be smooth and flat, and the color should be consistent, and there should be no sagging, blistering, orange peel and other paint diseases.

*Construction Parameters:

Curing time: 30 minutes (23 ° C)

Lifetime:

Temperature,℃	5	10	20	30
Lifetime (h)	10	8	6	6

Thinner Dosage (weight ratio):

Airless Spraying	Air Spraying	Brush or roll coating
0-5%	5-15%	0-5%

Recoating time (thickness of each dry film 35um):

Ambient temperature, ℃	10	20	30
Shortest Time, h	24	16	10
Longest time, day	7	3	3

*Construction Method:

Spraying: Spray pressure: 0.3-0.6MPa (about 3-6 kg/cm2)
Brush
Roll coating

*Safety measures:

Please pay attention to all safety signs on the packaging during transportation, storage and use. Take necessary preventive and protective measures, fire prevention, explosion protection and environmental protection. Avoid inhalation of solvent vapors, avoid contact with skin and eyes with paint. Do not swallow this product. In case of accident, seek medical attention immediately. Waste disposal should be in accordance with national and local government safety regulations.
